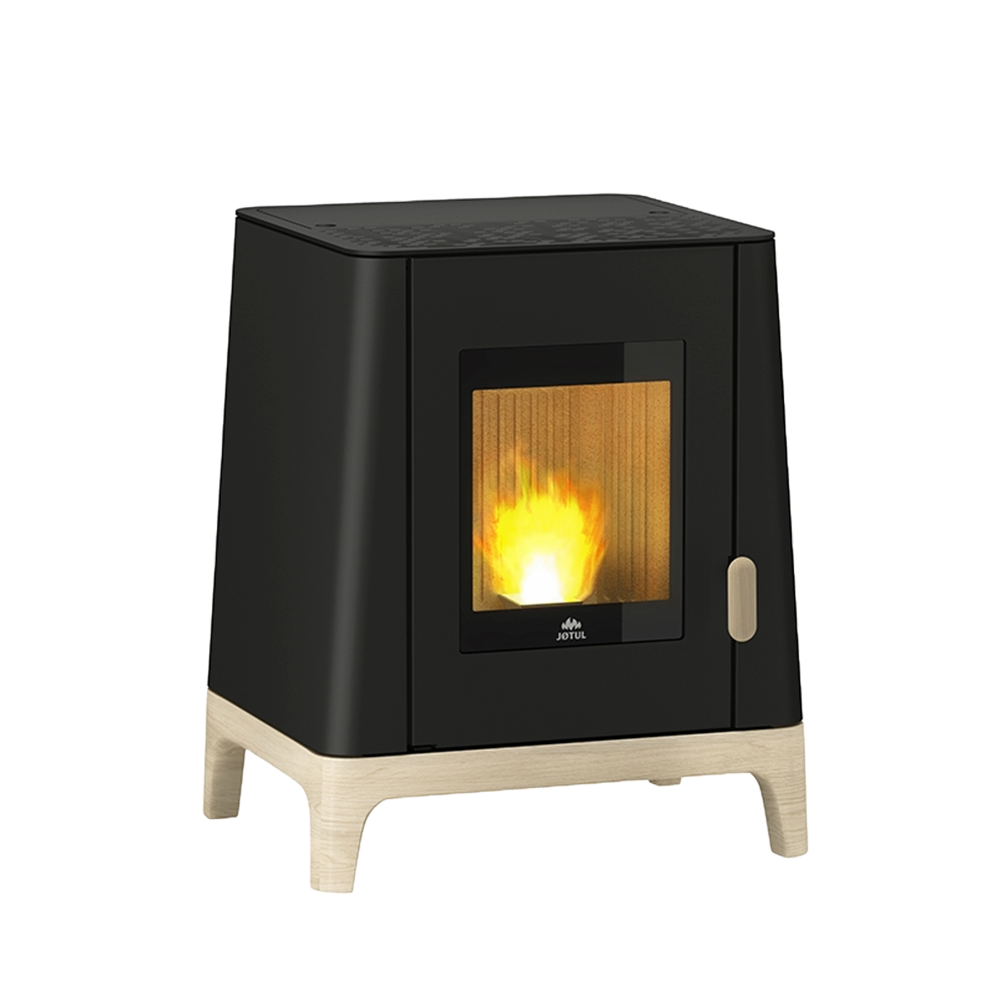

JØTUL PF 501 New Product

Small pellet stove with caracter

Description

The JØTUL PF 501 stands out with its slightly trapezoidal design and its ideal size for "small" interiors or installation in an open fireplace. Thanks to its integrated T-connector, this appliance can be installed as close to the wall as possible, with a centred vertical flue outlet. Its technical advantage is its cast iron heating element and ceramic ignition resistor. When it comes to aesthetics, you can stay cool with a matt black paint finish, or be daring with a new Corten colour finish!

Natural wood base and handles
Wide view of the fire
Automatic combustion control for optimum performance
Integrated Wi-Fi and Bluetooth for optimum ease of use

Size

Height: 740 mm

Width: 620 mm

Depth: 625 mm

Colors

Black paint (Selected)

Corten (Selected)

Clean burn

Closed combustion

Technical Specifications
Documents

Specifications

Height 740 mm
Width 620 mm
Depth 625 mm
Weight 130 kg
Flue outlet Ø 80 mm
Flue exit options Top / Rear

Nom output 5.7 kW
Efficiency 94%
Heating capacity cubic up to 200 m³
CO Emission 0.00%
Dust Product Emission 15 mg/Nm³
NOx Emission 116 mg/Nm³
OGC Emission 4 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes

Installation- and User Manual (5.96 MB)

Exploded view and spareparts (1.38 MB)

Ecolabel (329.62 KB)

Ecolabel datasheet (896.62 KB)

Declaration of Performance (970.85 KB)

Declaration of Conformity (373.13 KB)
