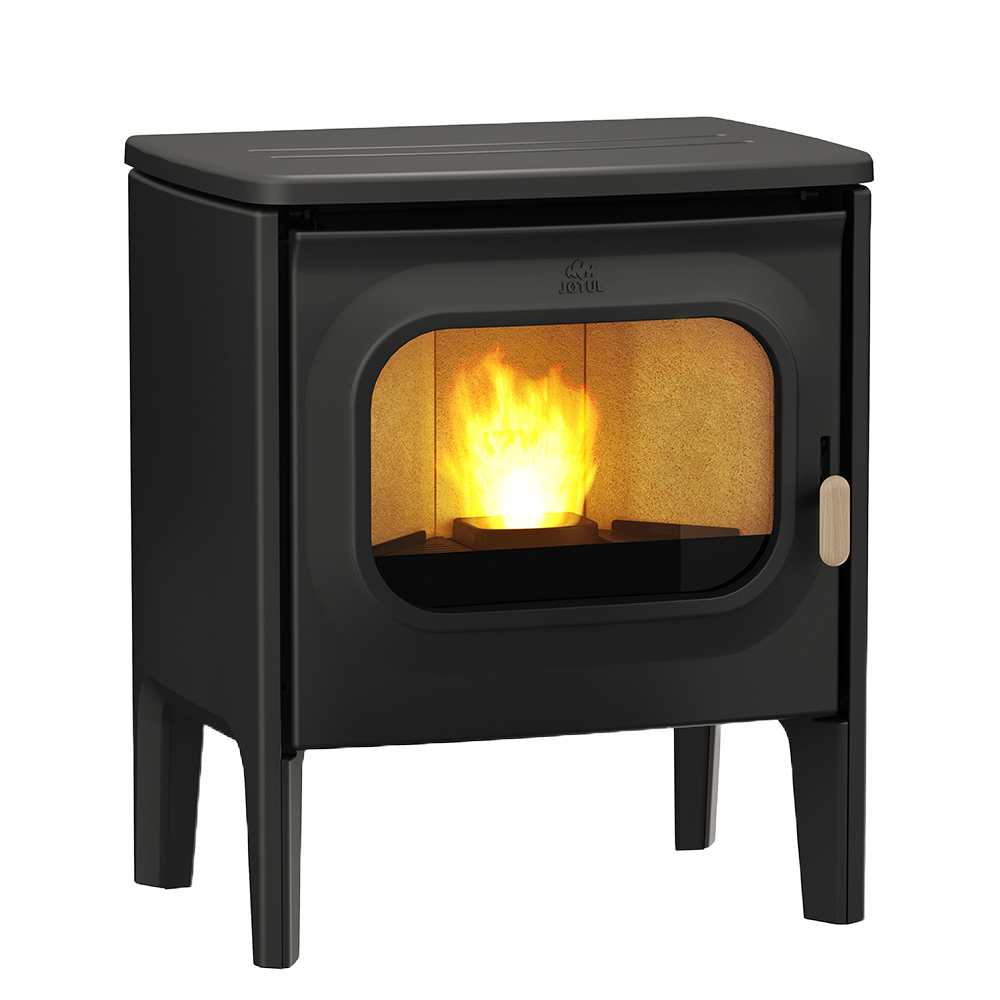

Pellets
Pellets
Size
Height: 840 mm
Width: 730 mm
Depth: 615 mm
Colors
Black paint
(Selected)
-
Height 840 mm
-
Width 730 mm
-
Depth 615 mm
-
Weight 176 kg
-
Flue outlet Ø 80 mm
-
Flue exit options Top / Rear
-
Tank capacity 15 Kg
Specifications
-
Nom output 8.8 kW
-
Efficiency 93%
-
Heating capacity cubic up to 320 m³
-
CO Emission 0.01%
-
Dust Product Emission 14 mg/Nm³
-
NOx Emission 94 mg/Nm³
-
OGC Emission 3 mg/Nm³
-
Closed combustion Yes
Installation- and User Manual
(5.75 MB)
Exploded view and spareparts
(1.32 MB)
Declaration of Performance
(970.34 KB)
Ecolabel
(324.99 KB)
Ecolabel datasheet
(896.45 KB)
Test certificate
(2.02 MB)
Declaration of Conformity
(372.7 KB)
