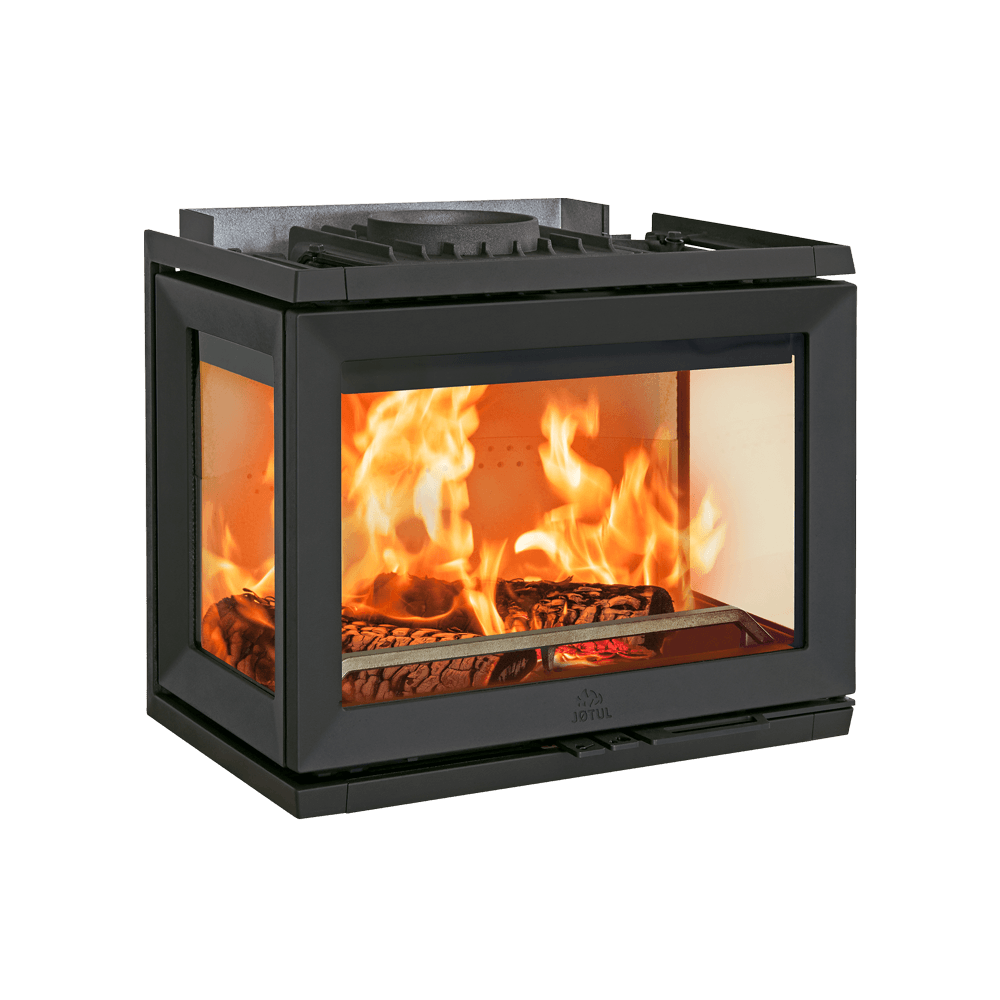

JØTUL I 520 FRL

Flexible insert system with glass on three sides

Description

The Jøtul I 520 Series is a flexible insert system that consists of four inserts. You can choose whether you want glass on one, two or three sides. The design glass wood burner is timeless and the construction optimal and futuristic. Jøtul I 520 has enamelled burn plates which provide a light and airy flame picture. All glass has a heat reflecting surface that ensures cleaner glass and better combustion. Even though the firebox is large, it works well even at 3.5 kW effect.

  • Flexible insert system
  • Works well on low effect
  • Light enamelled burn plates

Size

Height: 499 mm

Width: 594 mm

Depth: 431 mm

Colors

Black paint (Selected)
Clean burn
Closed combustion. Photo
Closed combustion
Defra logo. Photo
Defra exempt

    Specifications

  • Height 499 mm

  • Width 594 mm

  • Depth 431 mm

  • Weight 110 kg

  • Log size up to 50 cm

  • Flue outlet Ø 150 mm

  • Flue exit options Top / Rear

  • Nom output 7.0 kW

  • Efficiency 77%

  • Heating capacity up to 143 m²

  • Heating capacity cubic up to 350 m³

  • CO Emission 0.07%

  • Dust Product Emission 14 mg/Nm³

  • NOx Emission 54 mg/Nm³

  • OGC Emission 60 mg/Nm³

  • Closed combustion Yes

  • Clean burn Yes

  • External air intake Yes

Statement terms (6.33 MB)
Exploded view (4.1 MB)
Leg rack (645.17 KB)
Decoration frame (5.4 MB)
Data sheet (1008.64 KB)
Ecolabel datasheet (145.34 KB)
Ecolabel (33.68 KB)
