Wood

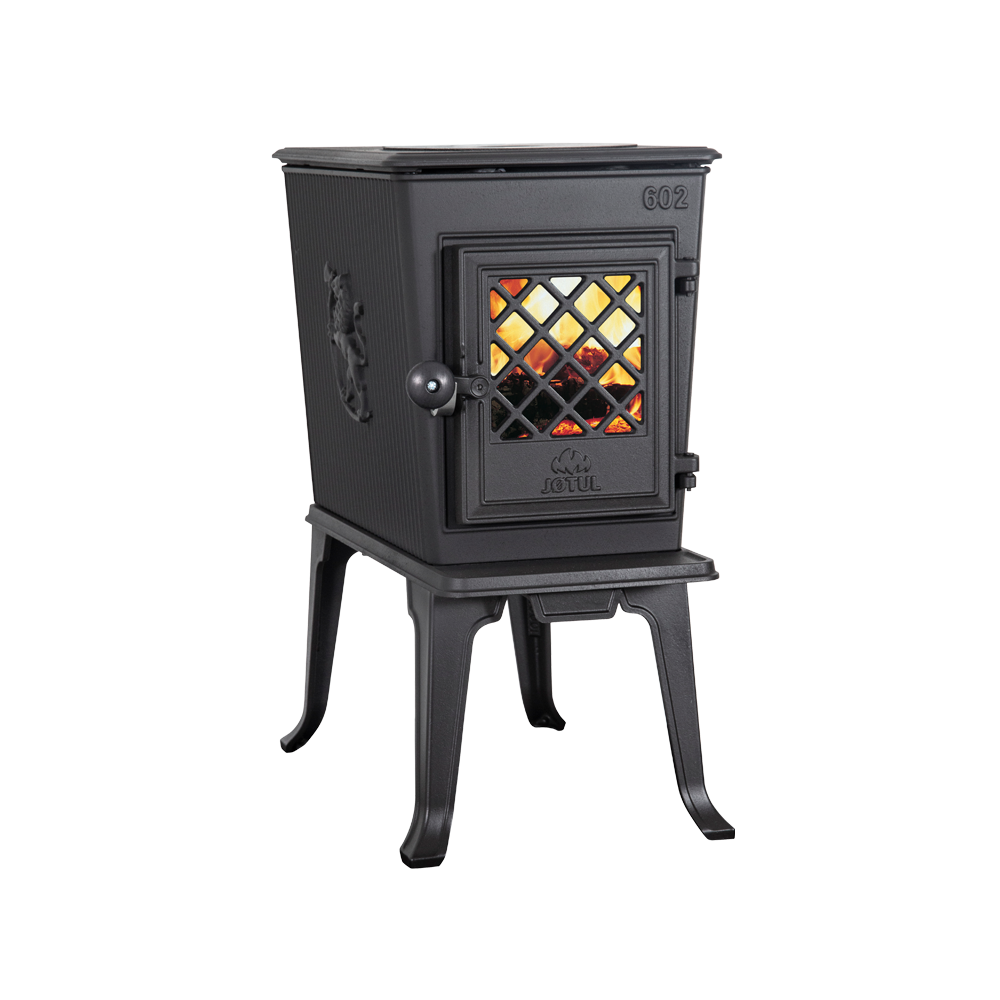

JØTUL F 602 ECO

Iconic design since 1940

Description

Jøtul F 602 Eco truly is one of our timeless classics. With its iconic design dating back to 1940 and modern combustion technology, it gives the best of both worlds. This wood stove can take combustion air from the outside, meeting even the most demanding modern homes. The Jøtul F 602 Eco can also be used for cooking. It comes as standard with a highly efficient cooking plate and can be equipped with an optional, smaller second plate. This is a practical wood stove in cast iron, with both personality and character. It is easy to install and heat efficient.

Fresh air connection
One-handle air control
Optional cooking top

Size

Height: 637 mm

Width: 320 mm

Depth: 540 mm

Colors

Black paint (Selected)

Blue black (Selected)

Clean burn

Closed combustion

Defra exempt

Technical Specifications
Documents

Specifications

Height 637 mm
Width 320 mm
Depth 540 mm
Weight 86 kg
Log size up to 40 cm
Flue outlet Ø 125 mm
Flue exit options Top / Rear

Nom output 4.9 kW
Efficiency 81%
Heating capacity cubic up to 200 m³
CO Emission 0.09%
Dust Product Emission 25 mg/Nm³
NOx Emission 87 mg/Nm³
OGC Emission 55 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes

Installation- and User Manual (7.95 MB)

Statement terms (281.63 KB)

Exploded view and spareparts (1 MB)

Outside air connection (252.38 KB)

Declaration of Performance (1.25 MB)

Data sheet (632.92 KB)

Ecolabel datasheet (380.98 KB)

Ecolabel (23.61 KB)

UKCA (121.34 KB)

Self closing door mechanism (151.75 KB)

Declaration of Conformity (181.79 KB)

Screen barrier installation (916.49 KB)

Exploded view (7.32 MB)
